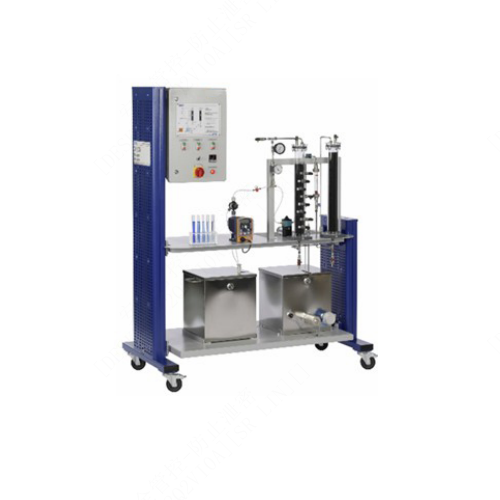

SMTH-CE 583 Adsorption Trainer Educational Training Equipment Demonstrator Thermal Laboratory Equipment1 Description
2 adsorbers with activated carbon filling o adsorber with 8 sampling points o safety adsorber for closed water circuit o continuous process
•metering pump for centralized adsorbate solution o pump for recirculating the treated water o water temperature control o digital temperature indication o flow rate adjustable
change of adsorbate concentration and contact time
2 Technical data
Adsorber and safety adsorber
inside diameter: each 60mm
height: each 600mm
capacity: each 1700cm3 Tanks
treated water: 45L
adsorbate solution: 45L Circulation pump
max. flow rate: 180L/h
max. head: 10m Metering pump
max. flow rate: 2,1L/h
max. head: 160m Heater
max. power: 500W Measuring ranges
