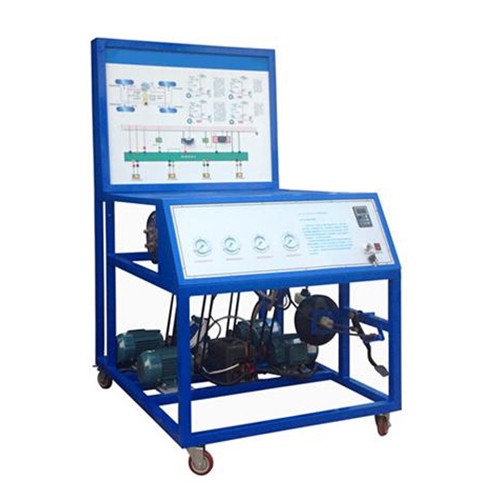

SMA078A Brake ABS Training Stand Automotive Didactic Equipment Educational Equipment Teaching Equipment
1. Overview
Dimension: 1300mm×1000mm×1800mm（L×W×H）
Operating environment temperature: -5℃～40℃,humidity ≤80%
ABS type SVW ABS
ABS mode GSI
Overall bench adapt international standard square tube , angle iron seamless welding, after the surface polishing grinding ,then the surface is dealt with high temperature spraying plastics , it can anti-corrosion and anti-aging , hardly lose it’s color, at the bottom of the bench is equipped with universal self-locking castor for mobile teaching .

Detection board adapt the pure aluminum-plastic panel, On the detection panel with perceptual intuition electric control system schematic diagram, and the color is consistent with the original car control system ,and it is equipped with operation specification and experiment guidbook ,etc .
2 Product content :
It’s equipped with original component ,including electric control unit ,hydraulic control unit ,wheel speed sensor ,brake pedal ,brake master cylinder ,vacuum booster tank ,brake disc ,brake caliper ,braking line ,diagnose interface, system and general fault control board ,test board ,with whole color circuit principle diagram board ,mobile bench ,operation specification and experiment guidbook .
