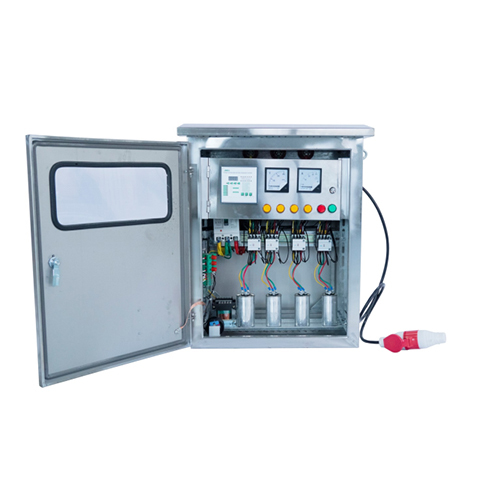

SMT466 Capacitor Bank Didactic Equipment Electrical Lab Equipment Didactic Equipment Vocational Training Equipment1. Equipment introduction
1.1 Overview
This low-voltage reactive power compensation box is suitable for rural and urban distribution networks and internal distribution networks of industrial and mining enterprises. Power compensation; It can also be used for on-site reactive power compensation of low-voltage power grids and power equipment in factories, mines, petroleum, chemicals, railways, ports and other industries. Using single-chip microcomputer control technology, the sampling signal measurement system is a three-phase analog or three-phase electronic type. The measurement and switching thresholds can be set by the user or controlled by fuzzy logic; the work is stable and reliable; the actuator that controls capacitor switching is dedicated to switching capacitors. The capacitive non-contact switch is suitable for situations where the load changes frequently.
Using this device brings the following benefits:
Improve the power factor of the grid without returning reactive power
Stabilize voltage and improve distribution voltage quality
1.2 Features
•Capacitors: 4 cylindrical laminated polypropylene dielectric, 3 1 kvar capacitors and 1 3 kvar capacitor.
• Contactors: 4 20 amps.
•Controller: Automatic.
Cabinet: with IP54 protection level.
Thermal magnetic switch
•Input protection: thermal magnetic switch.
•Highest level of protection: 4 x 20 amp thermal magnetic switches.
•Voltage type: three-phase.
•Voltage: 240V. Additional features
Additional features of the above components:
6-level automatic controller.
• Discharge resistor in each capacitor or overcurrent limiting inductor.
indicator light
•Two (2) indicator lights, one (1) red and one (1) green.
cabinet
• Metal cabinet with key.
•One (1) command and control transformer.
2. Technical parameters
Ambient temperature: -25℃~55℃ (In places where the temperature is lower than -25℃, there are also specially treated products.)
Relative air humidity: maximum relative humidity 90% (at 20°C)
Environmental conditions: No explosive or flammable hazardous media, no gases that corrode metal and conductive dust that destroys electrical insulation
Maximum precipitation intensity: 50mm/10min
Voltage fluctuation range: -15%~+10%

3.Components list and detailed introduction
3.1 Main part:
|
No
|
Name
|
|
1
|
Intelligent reactive power compensation controller
|
|
2
|
Voltmeter
|
|
3
|
Ammeter
|
|
4
|
breaker
|
|
5
|
Terminal block
|
|
6
|
Ground wire
|
|
7
|
AC transformer
|
|
8
|
transformer
|
|
9
|
capacitance
|
|
10
|
Three-phase five-wire power cord
|
|
11
|
flow contactor
|
|
12
|
Yellow indicator light
|
|
13
|
red indicator light
|
|
14
|
Green indicator light
|
3.2 Accessories
|
No
|
Name
|
Qty
|
|
1
|
Equipment wiring diagram
|
1
|
|
2
|
Intelligent reactive power compensation controller manual
|
1
|
4. Experiment list
Experiment 1 Design requirements and functional characteristics of intelligent reactive power compensator
Experiment 2 Operation experiment of intelligent reactive power compensation controller
