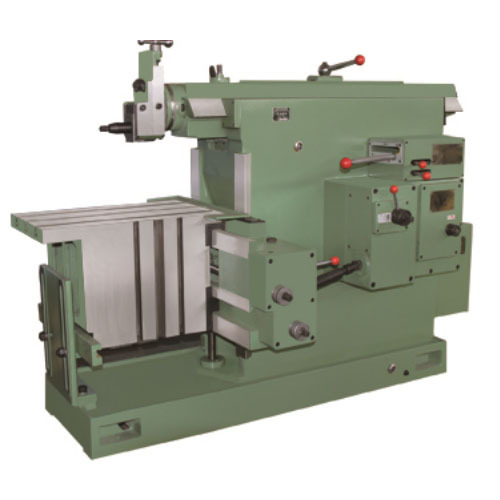

SMM0043 Conventional Shaping Machine CNC Machine Tools Didactic Equipment Teaching Equipment
Working Stroke 450 Working Table 400 x 290 Max. Table Horizontal Traverse 500 Max. Table Vertical Traverse 300 Max. Tool Shank 32 x 16 Stroke/Minute (4-Speed) 17-75 Main Motor 1.5 kW. : designed to provide students with hands-on experience in metal machining
Maximum planing length (mm): 600
Maximum distance from ram bottom to table surface (mm): 385
Maximum lateral table travel distance (mm): 630
Maximum vertical table travel distance (mm): 360
Working surface dimensions on the table (length × width) (mm): 600 × 400
Tool post travel (mm): 120

Ram reciprocating strokes per minute: 14, 20, 28, 40, 56, 80
Tool post rotation angle (°): ±60°
Maximum planer shank dimensions (width × thickness) (mm): 20 × 32
Table motorized feed range: Horizontal feed (12 levels) (mm): 0.2~2.5
Vertical feed (12 levels) (mm): 0.08~1.00
Table center T-slot dimensions (mm): 20
Main motor power (kW): 3
Overall dimensions (length × width × height) (mm): 2357×1225×1480
Weight approx. 1750kg
