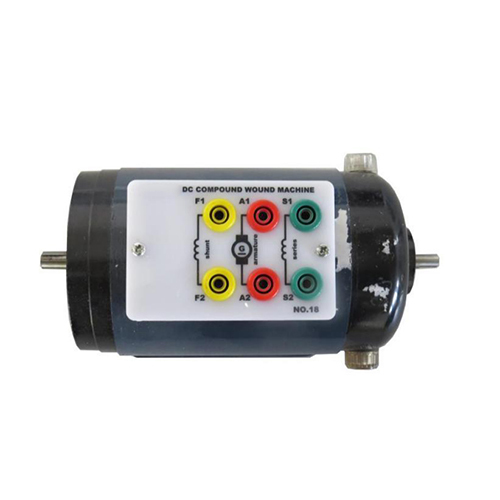

SMTE188 DC Compound Machine Electrical Lab Equipment Didactic Equipment Vocational Training Equipment1 Introduction
DC shunt motor is a DC motor equipped with shunt winding and series winding in the main magnetic pole.
Compound machine excitation winding is divided into two parts, part of the series with the armature winding, the other part with the armature winding in parallel, according to the direction of the magnetic field can be divided into two parts winding generation compound machine and compound machine. Compound DC motor is widely used in ships, trolley buses and lifting mining equipment.
2 Technical data
Rated voltage of compound dc motor :42V.
DC excitation voltage :DC36V;
Rated speed :3000 RPM.
