SMTE697 DC Motor Closed Loop Control (Position) Experimental Portable Case Educational Equipment School Teaching Equipment Electrical Lab Equipment
1. Product Overview：

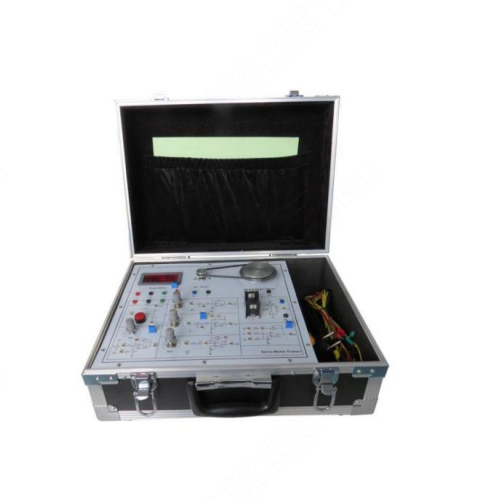

DC Motor Closed- Loop Control (Position) Experimental Portable Case is a closed-loop DC servo motor speed control loop (P, I, D) of the training device. The product uses aluminum box structure, the use of high-performance servo motors, sensors and other components, experimental box rational design, layout novel applications for school teaching and student training.
2. Main technical parameters:
2.1 Power supply: AC220V±10%；50Hz；≤50W
2.2 Protective grounding Description: The power outlet must be connected to a reliable ground wire.
3. Dimensions: 420mm*300mm*120mm
4. Weight: less than 3.5Kg

5. Work Environment：
Occasions: Avoid dust, oil mist and corrosive gases
Operating Temperature：0~+50℃
Storage Temperature：-20 ℃~+80℃
Humidity：40~90%RH
3.Experiment list
Experiment 1: Disturbance Output Experiment
Experiment 2: Close Loop P Control Experiment
Experiment 3: Close Loop PI Control Experiment
Experiment 4: Close Loop PID Control Experiment
