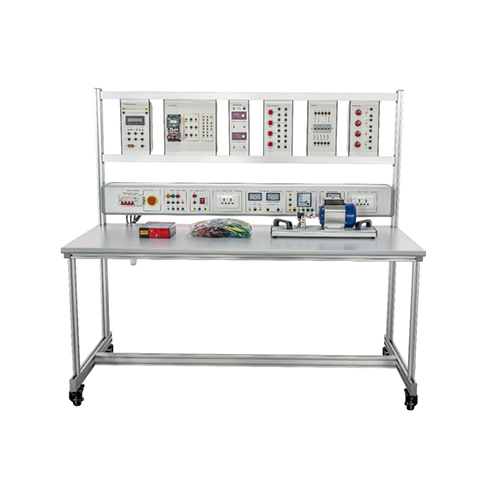

SMTE513 Electrical Power Engineering Trainer Electrical Lab Equipment Teaching Equipment Educational Equipment1. Product introduction
1.1 Overview
This training platform contains various types of circuits, mastering their control principles and methods, and cultivating students' technical skills and knowledge. This trainer is suitable for students in vocational schools, technical schools, and college students such as electrical technology, electronic technology, and mechatronics technology.
1.2 Features
1.The training workbench adopts an aluminum column structure frame and contains an instrument box and a power box. It is used for testing and measuring technical parameters. It is easy to use and not easily damaged.
2. Equipped with motors, students can combine them to complete multiple training contents.
3. The training workbench has a high safety system.
2 Technical parameters
1. Input power: three-phase five-wire, 220V±10% 50Hz
2. Size: 1680mm×880mm×1700mm
3. Weight: 137KG
3 Product composition
3.1 Motor components
|
No
|
Name
|
|
1
|
Encoder
|
|
2
|
Coupling
|
|
3
|
electric motor
|
3.2 Power control panel
The power control panel adopts aluminum structure metal panel, fully enclosed, box structure.
|
No
|
Name
|
|
1
|
4P circuit breaker (with leakage protection)
|
|
2
|
Emergency stop switch
|
|
3
|
Three-phase electrical output module
|
|
4
|
Single phase electrical output module
|
|
5
|
Ammeter
|
|
6
|
Voltmeter
|
|
7
|
power meter
|
|
8
|
Power factor meter
|
|
9
|
110V socket
|
3.3 Training workbench
The training workbench adopts aluminum alloy structure.
The bottom of the workbench is equipped with 4 universal wheels and 2 brakes on the wheels.
The trainer can be moved or stopped easily.
The thickness of the workbench panel is 25mm high-density substrate with high temperature and high pressure fireproof treatment process.
The structure is reasonable and reliable, and the shape is beautiful.
3.4 Module part
|
No
|
Name
|
|
1
|
PRM measurement module
|
|
2
|
Frequency converter module
|
|
3
|
Analog module
|
|
4
|
button module
|
|
5
|
fuse module
|
|
6
|
indicator light
|
3.5 Accessories
|
No
|
Name
|
Qty
|
|
1
|
Yellow 4mm safety connection cable
|
5
|
|
2
|
Green 4mm safety connection cable
|
5
|
|
3
|
Red 4mm safety connection cable
|
5
|
|
4
|
Blue 4mm safety connection cable
|
5
|
|
5
|
Black 4mm safety connection cable
|
5
|
|
6
|
Two-color 4mm safety connection cable
|
2
|
|
7
|
Yellow 2mm safety connection cable
|
1
|
|
8
|
Green 2mm safety connection cable
|
1
|
|
9
|
Red 2mm safety connection cable
|
2
|
|
10
|
Black 2mm safety connection cable
|
2
|
|
11
|
Blue 2mm safety connection cable
|
1
|
|
12
|
multimeter
|
1
|
|
13
|
Test pen
|
2
|
4. Experiment list
Experiment 1. PRM measurement module and frequency converter module test
Experiment 2. External analog control motor test
Experiment 3. Power meter test
Experiment 4. Power factor meter test
Experiment 5. Ammeter and voltmeter test
