SMTE2486 Electricity Kit For Learning Basic Electricity (Electromagnetism; Electrical Circuits; Electric Motor) Electrical Lab Equipment Teaching Equipment Educational Equipment1. Equipment introduction
1.1 Overview
This training device includes various types of motors and industrial control components. Through relevant experiments, students can become familiar with the operating characteristics of three-phase AC motors and DC motors and the use of various industrial control components, master their control principles and methods, and train students The corresponding knowledge and skills are suitable for teaching and skills training assessment in related majors in higher vocational colleges, colleges, secondary vocational schools and technical schools.
1.2 Features

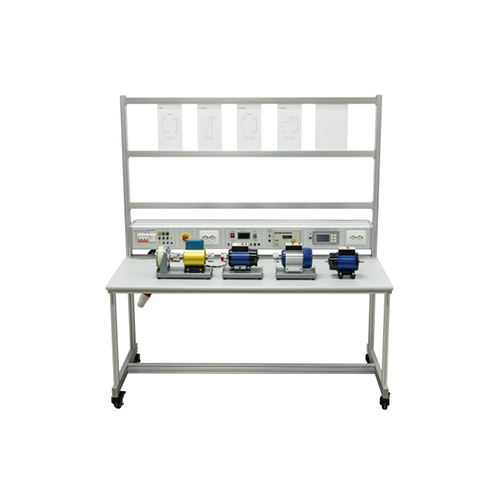

(1) The training platform adopts an aluminum profile column frame structure, which is simple and elegant as a whole. It is equipped with universal wheels at the bottom, which can be flexibly moved, and the height can be adjusted individually according to the ground conditions. Measuring instruments and training power supplies are installed in built-in integrated hanging boxes, which are easy to use and not easily damaged.
(2) Equipped with multiple types of motors, fully configured and can be used in combination.
(3) The combination of software and hardware can complete training content in a variety of subjects.
(4) The training platform has a good safety protection system.
2. Technical parameters
Input power: three-phase five-wire 380V±10%, 60Hz
Size: 1600mmx800mmx1800mm
Capacity: <2KVA
Weight: <250Kg
Ambient temperature: -10℃～+40℃
Relative humidity: <85% (25℃)
3. Components list and detailed introduction
3.1 Main part
|
No
|
Name
|
|
1
|
Product frame
|
|
2
|
Universal wheel
|
|
3
|
desktop
|
|
4
|
power box
|
|
5
|
Three-phase squirrel cage asynchronous motor
|
|
6
|
DC compound motor
|
|
7
|
Torque transmitter
|
|
8
|
Magnetic powder brake
|
|
9
|
Universal motor
|
3.2 Power box part
|
No
|
Name
|
|
1
|
Main power switch 4p leakage circuit breaker
|
|
2
|
AC 380V AC output unit, fuse and indicator light
|
|
3
|
emergency button
|
|
4
|
European socket
|
|
5
|
DC PWM output unit
|
|
6
|
Magnetic powder brake control module
|
|
7
|
Torque speed display instrument unit
|
3.3 Equipment configuration list
|
No
|
Name
|
Qty
|
|
1
|
Product platform
|
1
|
|
2
|
power box
|
1
|
|
3
|
Three-phase squirrel cage asynchronous motor
|
1
|
|
4
|
DC compound motor
|
1
|
|
5
|
Torque transmitter
|
1
|
|
6
|
Magnetic powder brake
|
1
|
|
7
|
Universal motor
|
1
|
3.4 Accessories
|
No
|
Name
|
Qty
|
|
1
|
1 meter double-ended black 4mm safety connection cable
|
5
|
|
2
|
1 meter double-ended green 4mm safety connection cable
|
5
|
|
3
|
1 meter double-ended blue 4mm safety connection cable
|
8
|
|
4
|
2 meters double head blue 4mm safety connection cable
|
8
|
|
5
|
1 meter double head red 4mm safety connection cable
|
5
|
|
6
|
1 meter double head double color 4mm safety connection cable
|
2
|
|
7
|
Fuse 10A 5*20
|
2
|
|
8
|
Fuse 5A 5*20
|
5
|
|
9
|
Connecting cables
|
2
|
4 Experiment list
Experiment 1 Three-phase squirrel cage asynchronous motor power supply rotation experiment
Experiment 2 DC compound excitation motor power supply rotation experiment
Experiment 3 Three-phase squirrel cage asynchronous motor drives DC compound excitation motor to generate electricity
Experiment 4 Magnetic Powder Brake Experiment
Experiment 5 Torque Transmitter Experiment
