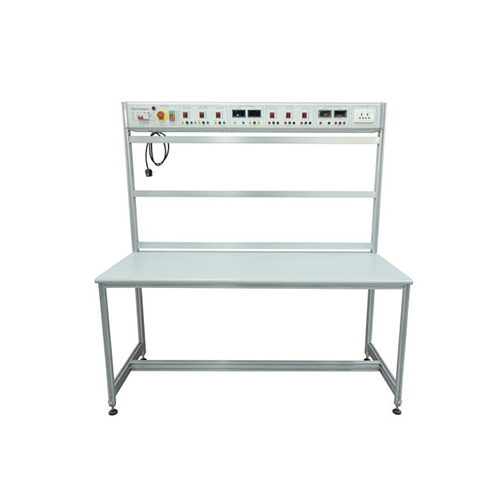

SMTE2484 Electronic Workbench Electrical Lab Equipment Teaching Equipment Educational EquipmentI.Product Overview
1.1 Overview
This training device is designed according to the current electrician training requirements and provides a variety of DC power supplies and AC power supplies. It cultivates students' corresponding knowledge and skills and is suitable for teaching and skills training assessment in related majors in higher vocational colleges, junior colleges, secondary vocational schools and technical schools.
1.2 Features
This training device is designed according to the current electrician training requirements and provides a variety of DC power supplies and AC power supplies. It cultivates students' corresponding knowledge and skills and is suitable for teaching and skills training assessment in related majors in higher vocational colleges, junior colleges, secondary vocational schools and technical schools.
II.Performance Parameter
Input power: AC220V±10% 50Hz
Weight: <150kg
Working conditions: Ambient temperature -10℃～+40℃ Relative humidity <85% (25℃)
Size: 1600mm*700mm*1670mm
Overall machine capacity: <3.0KVA
III.Components List and Detailed Introduction
3.1 Main part
|
Number
|
Name
|
|
1
|
Power box
|
|
2
|
Training table
|
3.2 Power box part
|
Number
|
Name
|
|
1
|
Breaker
|
|
2
|
Power Indicator
|
|
3
|
Emergency stop switch
|
|
4
|
Main power switch
|
|
5
|
AC220V power module
|
|
6
|
AC24V/2A power module
|
|
7
|
AC12V/1A power module
|
|
8
|
AC0-500V digital display voltmeter
|
|
9
|
AC0-3A digital display ammeter
|
|
10
|
DC24V/3A power module
|
|
11
|
DC12V/2A power module
|
|
12
|
DC5V/2A power module
|
|
13
|
DC0-500V digital display voltmeter
|
|
14
|
DC0-3A digital display ammeter
|
|
15
|
Socket
|
3.3 Accessories
|
Number
|
Name
|
Quantity
|
|
1
|
5A Fuse tube
|
5
|
|
2
|
3A Fuse tube
|
5
|
|
3
|
Black 4mm electrical cable
|
5
|
|
4
|
Blue 4mm electrical cable
|
5
|
|
5
|
Green 4mm electrical cable
|
5
|
|
6
|
Red 4mm electrical cable
|
5
|
|
7
|
Yellow 4mm electrical cable
|
5
|
|
8
|
Two-color 4mm electrical cable
|
5
|
IV.Experiment List
Experiment 1 AC220V power module output experiment
Experiment 2 AC24V/2A power module output experiment
Experiment 3 AC12V/1A power module output experiment
Experiment 4 DC24V/3A power module output experiment
Experiment 5 DC12V/2A power module output experiment
Experiment 6 DC5V/2A power module output experiment
