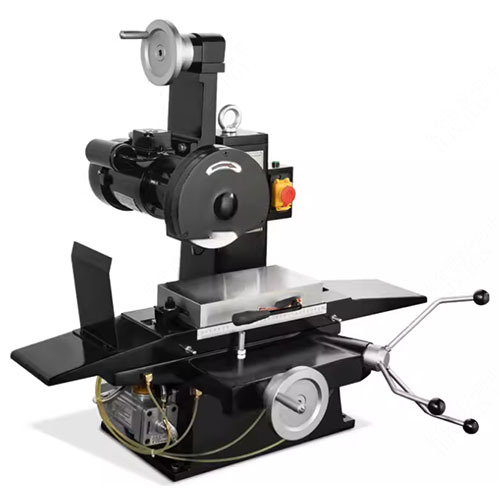

Grinding Machine CNC Machine Tools Didactic Equipment Teaching Equipment

No.SMM0053

SMM0053 Grinding Machine CNC Machine Tools Didactic Equipment Teaching Equipment

Machine net weight

210Kg

Grinding head motor

550W 220V

Description

SMM0053 Grinding Machine CNC Machine Tools Didactic Equipment Teaching Equipment
Grinding machine features:
1. High-quality integral grinding head, high rigidity and high precision
2. Compact size, lightweight, easy to operate and maintain
3. Centralized lubrication with manual oil pump
4. Equipped with a permanent magnet chuck
5. Machine markings and signs are made of stainless steel using an etching process
6. Warranty certificate available; CE and ISO9001 certifications provided.

Cutting depth must not exceed: 0.03mm	Grinding wheel linear speed: 35m/s
Worktable size: 152×304mm	Grinding height: 210mm
Worktable longitudinal travel: 340mm	Table transverse travel: 170mm
Worktable T-slots (number × parameters): 1-12mm	Grinding wheel outer diameter × inner diameter × thickness: 180 × 32 × 13mm
Grinding head motor: 550W 220V	Machine net weight: 210Kg
Overall dimensions (L×W×H): 930x780x730mm	Vertical feed handwheel increments: 0.025
Transverse feed: Handwheel increments: 0.02mm
