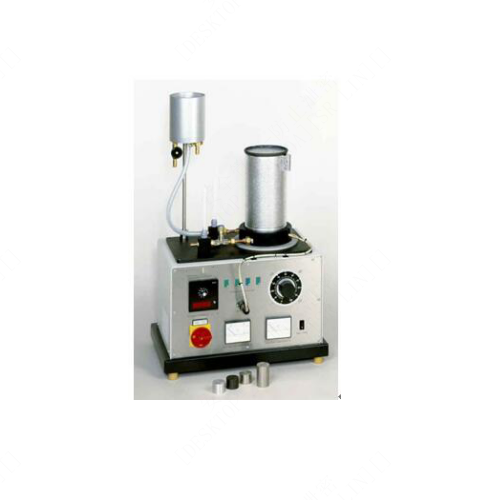

Heat Conduction in Solids Educational Training Equipment Demonstrator Thermal Laboratory Equipment

SMTH041 Heat Conduction in Solids Educational Training Equipment Demonstrator Thermal Laboratory Equipment
Specification
linear conduction in metals
specimens placed between electric heater and water-cooled plate
6 specimens (2x copper, aluminium, steel and 2x stainless steel)
heating capacity, adjustable
raised tank for constant water pressure
2 thermometers for water temperature
4 temperature sensors, display with selector switch
voltmeter, ammeter

Technical Data
Heater: 365W
Specimens
copper, Dxl: 40x65mm and 40x30mm
aluminium, Dxl: 40x65mm
steel: Dxl: 40x30mm
stainless steel: Dxl: 40x65mm and 40x30mm
Dewar vessel: 2.1L
Raised tank: water pressure: 356mmWC
Measuring ranges
temperature (thermometer): 2x -10...50°C
temperature (sensor): 4x 0...200°C
voltage: 0...230VDC
current: 0...1.5A
Dimensions and Weight
LxWxH: 550x350x780mm
Weight: approx. 43kg
Required for Operation
230V, 50/60Hz, 1 phase or 120V, 60Hz/CSA, 1 phase
Water connection
Scope of Delivery
1 experimental unit
1 measuring tank, 2L
1 stopwatch
6 specimens
2 thermometers
1 manual
