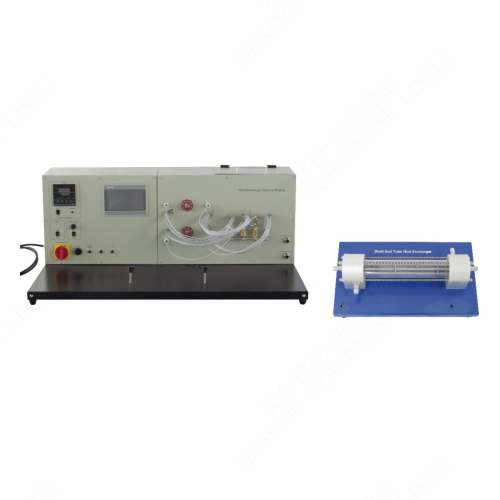

SMTH070 Heat Exchanger Unit Mono-Tubular Educational Training Equipment Demonstrator Thermal Laboratory EquipmentFunction:
Laboratory-sized Heat Exchanger Unit Mono-Tubular that enables;
Co-current thermal exchanges.
Thermal exchanges counter-current.
Laminar or turbulent regime.
Thermal balance on the exchanger
Technical Details
Water reheater
Capacity: 5 liters
Settings of + 25°C to + 100°C
Power 2000 W
Agitation system included
Hot Circuit
Closed Circuit
Exchanger
With concentric tubes
Material: stainless steel
Exchange surface: 168.6cm²
Temperature sensors
4 sensors: inputs and outputs
T type thermocouple
Flowmeters
2 flowmeters: hot and cold circuit
Circuit hot: 50 to 800mL/min
Cold circuit: 0.2 to 1.5L/min
Valves
2 setting valves hot and cold flow rate
Multi-turn valves with needle
Circulation pump
Centrifugal pump
Cold Circuit
Connected to the network Input and output of each exchanger circuit
Dimension: ( LxWxH ):1000 mmx500 mmx620 mm
Weight : 40 kg
