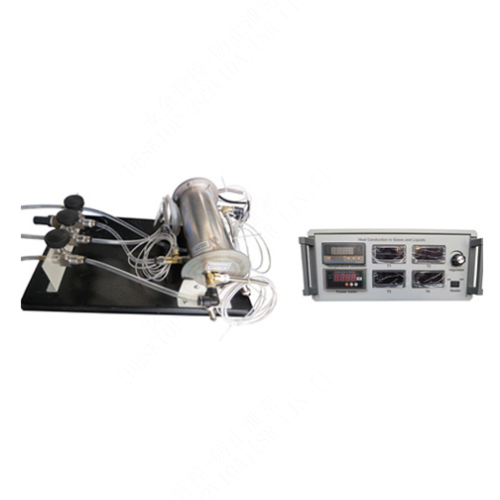

Heat Transfer by Conduction Educational Training Equipment Demonstrator Thermal Laboratory Equipment

SMTH075 Heat Transfer by Conduction Educational Training Equipment Demonstrator Thermal Laboratory Equipment
1 Specification
examination of heat conduction in solids
experimental set-up consisting of experimental unit and display and control unit
linear heat conduction: 3 measuring objects, heating and cooling element, 9 temperature measuring points
radial heat conduction: brass disc with heating and cooling element, 6 temperature measuring points
cooling with mains water
electric heating element
representation of the temperature profiles with software
software for data acquisition via USB under Windows Vista or Windows 7

2 Technical Data
Linear heat conduction
3 measuring objects, insulated
1x DxL: 25x30mm, steel
1x DxL: 15x30mm, brass
1x DxL: 30x30mm, brass
heater: 140W
Radial heat conduction
disc diameter: 110x4mm
heater in the midle of the disc: 125W
cooling coil at outer diameter of disc
Measuring ranges
temperature: 0...100°C
power: 0...200W
Dimensions and Weight
LxWxH: 400x360x210mm (experimental unit)
LxWxH: 470x380x210mm (display and control unit)
Weight: approx. 22kg
Required for Operation
230V, 50/60Hz, 1 phase or 120V, 60Hz/CSA, 1 phase
Water connection
Scope of Delivery
1 experimental unit
1 display and control unit
1 set of measuring objects
1 set of hoses
