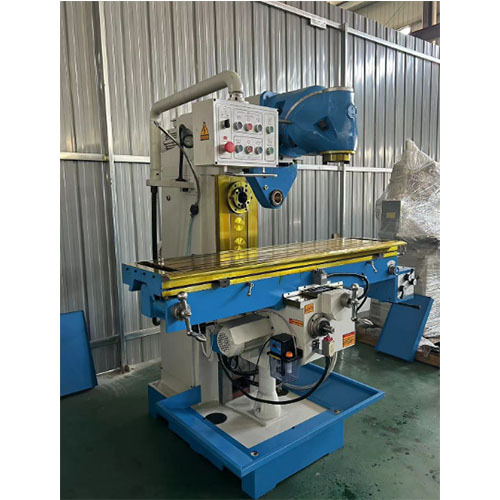

SMM0020 Horizontal Milling Machine With Universal Head CNC Machine Tools Educational Equipment Vocational Training Equipment
CE Conformity Certificate
3-Axis Visual Display System
Automatic and rapid feeds in all 3 axes
Universal cutter head, allowing for quick, easy, and precise angular spindle positioning; pivots on two planes for vertical/horizontal/inclined milling
Rigid guides made of hardened steel for maximum stability
Backlash compensation on all movements
Centralized lubrication
Handwheels with verniers
Ground and oil-bath lubricated drive gears
Table: Minimum length: 1300mm and minimum width: 350mm
Minimum longitudinal travel: 1000mm
Minimum transverse travel: 280mm
Minimum vertical travel: 400mm
Number of spindle speeds (vertical/horizontal): 12/12minimum
Maximum spindle speeds (vertical/horizontal): 1600rpm minimum
Horizontal spindle motor power: 4 kW min.
Vertical spindle motor power: 4kW min.
Head tilt: 360°
Head rotation: 360°
Maximum table feed speed: 380mm/min.
T-slots on table: 3 minimum
Three-phase power supply: 380V or 400V/50Hz
Horizontal/vertical spindle attachment: ISO 40 or higher
Adjustable work light
Supplied with:
1 Universal head
1 Steady rest
2 Cutter mounting rods
1 Fixed vise with graduated rotating base, 120mm capacity mini
1 Mini self-tightening drill chuck, 13mm capacity, MT 2.
4 Long and metric milling arbors with spacer rings, 16, 22, 27, and 32mm.
1 Complete coolant system.
1 Milling chuck with smooth end, 16mm diameter, compatible with the machine spindle.
1 Milling chuck with smooth end, 22mm diameter, compatible with the machine spindle.
1 Milling chuck with smooth end, 27mm diameter, compatible with the machine spindle.
1 Milling chuck with threaded end, M12, compatible with the machine spindle.
1 Universal dividing head with 1/40 ratio, complete set of faceplates, tailstock with center, 3-jaw self-centering chuck, and lyre with set of gears.
1 Circular faceplate, minimum diameter: 200mm.
1 Boring head (0-100mm minimum) with micrometer adjustment, insert holder, 10 spare inserts, and accessories.
1 Collet chuck: taper compatible with the spindle. Includes 1 set of collets for diameters from 4 to 20mm.
4 External taper reducing sleeves compatible with the spindle: ISO/CM1, ISO/CM2, ISO/CM3, ISO/CM4.
Wrenches and service handle.
User manual in French and English.
Note: All accessories must be compatible with the machine.
Machine installation and commissioning must comply with applicable standards, including, if necessary, the supply and installation of a waterproof floor box with a suitable electrical outlet.
Training: Training group; materials provided by the supplier.
