Installation Technology Losses in Different Pipes Educational Training Equipment Demonstrator Thermal Laboratory Equipment

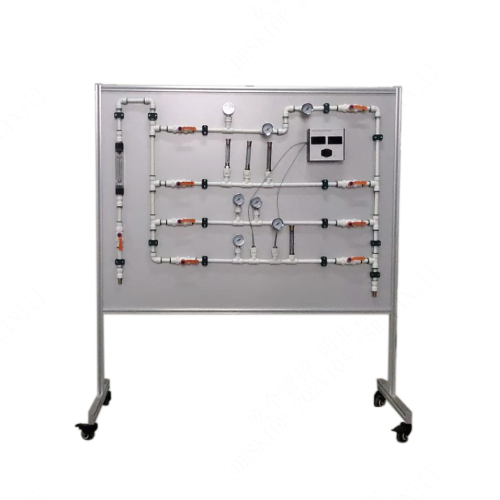

SMTH3003 Installation Technology Losses in Different Pipes Educational Training Equipment Demonstrator Thermal Laboratory Equipment
1 Description
pressure loss in pipes
different materials and diameters
When flow passes through pipes, pressure losses occur due to the friction between the pipe wall and the water.
The pressure loss is directly dependent on the surface roughness of the pipe inner wall, and thus on the material used.
In addition, the pressure loss is affected by the flow velocity and the cross-sectional area being flowed through.
2 Learning objectives/experiments
investigation of the pressure losses of flow through pipes
measurement of the pressure differential on different pipe sections
influence of various pipe diameters
influence of different materials and surface roughness
effect of the flow velocity
comparison between experiment and theory

3 Specification
[1] investigation of friction-induced pressure losses in flow through pipes
[2] pipe elements are commercially standard components in heating and sanitary engineering
[3] clear panel mounted on a sturdy, movable frame
[4] four measuring sections with different pipe crosssections and materials
[5] pipe sections can be selected via ball valves
[6] water connections made using quick-release couplings in the inflow and return
[7] flow can be adjusted via valves
[8] flow measurement using rotameter
[9] differential pressure measurement via differential pressure meter with display
