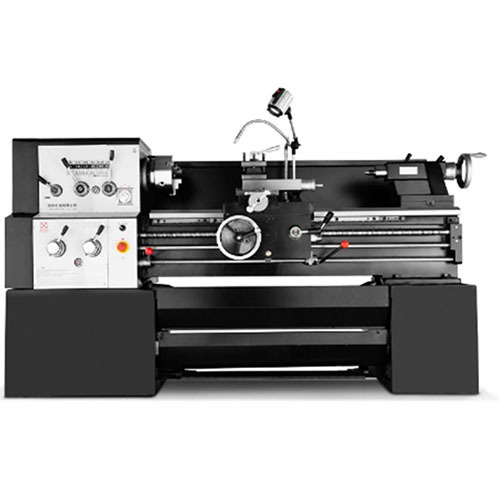

SMM0038 Machining Workshop 1-Meter Conventional Horizontal Turning Lathe for Educational CNC Machine Tools Didactic Equipment Teaching Equipment(3-Jaw Chuck; 4-Jaw Chuck; Steady Rest; Follow Rest; Face Plate; Coolant System; Brake System; Chasing Dial Indicator; Reduction Sleeve; Dead Centers; Full Length Splash Guard; Tool and Tool Box; English Manual; Spindle Speed 25-1600Rpm; Spindle Internal Table Mt6) Delivered With Machine Tools Kit
Maximum turning diameter on bed: 400mm
Maximum turning diameter on slide: 240mm
Maximum distance between two centers: 1000mm
Spindle bore taper: MT6
Spindle through-hole diameter: 48mm
Tailstock sleeve travel: 130mm
Tailstock sleeve taper: MT4
Large slide travel (longitudinal travel): 900mm
Medium slide travel (transverse travel): 240mm
Small slide travel (small tool post travel): 140mm
Metric thread/grade: 0.45~20mm/r (30)
Imperial thread/grade: 80～1¾T.P.I. (35)
Transverse feed/grade: 0.02~1.08mm/r (138)
Longitudinal feed/grade: 0.04~2.16mm/r (138)
Spindle speed: 25~1600r/min (12)
Main motor power (dual speed) YD132M-8/4 3/4.5kW
Main motor speed 750/1500r/min
Cooling pump motor AYB-20TH 0.115kW
Net weight 1450kg
Dimensions 2200×900×1250mm
Main drive V-belt model A-1950mm
Module thread/grade 0.25~10mm (25)
Pitch thread/grade 160～3½DP (30)
