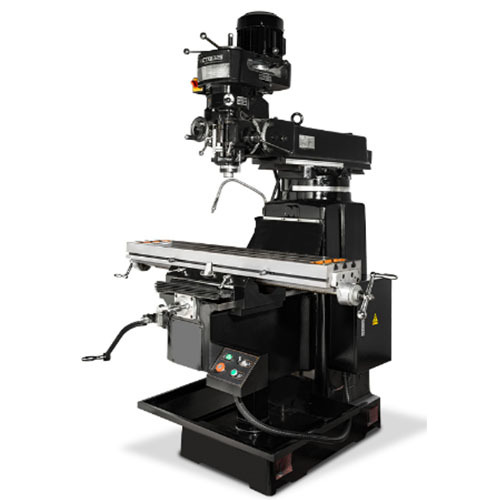

SMM0040 Meter Conventional Vertical Milling Machine for Educational CNC Machine Tools Educational Equipment Vocational Training EquipmentTable dimensions: 254×1270mm (10'×50')
X-axis travel: 780mm
Y-axis travel: 410mm
Z-axis travel: 420mm
Spindle taper: R8
Spindle travel: 127mm
Spindle speed: 16
Spindle feed: 0.076mm/0.003", 0.038mm/0.0015", 0.203mm/0.008"
Spindle low speed: 66, 110, 175, 270, 550, 930, 1460, 2270r/min
Spindle high speed: 132, 220, 350, 540, 1100, 1860, 2920, 4540r/min
Distance from spindle end face to table surface: 45-445mm
Distance from spindle axis to column: 13-400mm
Number of slots × width 3×16mm
T-slot spacing 65mm
Voltage 380V
Frequency 50Hz
Head motor 3HP/2.2KW
Cooling motor 1/8HP/40W
Maximum workpiece weight 300kg
Dimensions 1700×1680×2090mm
Net weight 1300kg
