Multi-functional Machine Tool CNC Machine Tools Didactic Equipment Teaching Equipment

Description

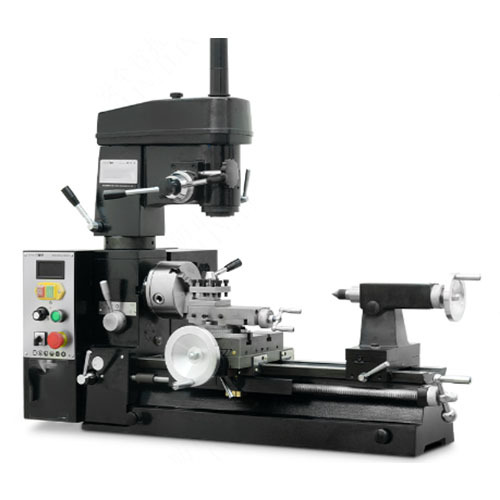

SMM0050 Multi-functional Machine Tool CNC Machine Tools Didactic Equipment Teaching Equipment
Features of the 300V Multifunctional Machine Tool:
1. Uses imported SKF bearings, improving service life and precision.
2. 1000W main motor, belt drive, stepless speed regulation.
3. The middle slide plate is equipped with a T-slot for clamping workpieces and can be used as a milling machine worktable.
4. The middle slide plate uses dovetail guideways; the guideway clearance can be adjusted using tapered inserts for wear resistance, surface contact, and high rigidity.
5. Push-pull clutch device allows switching between turning and milling/drilling operations.
6. Complies with CE and ISO production system standards, ensuring safety and reliability.

Turning
Slewing diameter on bed	300mm
Slewing diameter on intermediate slide	140mm
Maximum workpiece length	500mm
Spindle through hole diameter	26mm
Spindle taper hole	MT4
Longitudinal travel of main slide	420mm
Transverse travel of intermediate slide	200mm
Tool post support travel	80mm
Metric pitch range (number of types)	0.5～3mm （14）
Imperial pitch range (number of types)	11～40 1/n″ （20）
Longitudinal feed range	0.036 & 0.072mm
Tailstock sleeve feed stroke	50mm
Tailstock sleeve taper hole	MT3
Drilling and milling
Drilling Diameter	20mm
Distance from Spindle End Face to Table Surface	240～320mm
Distance from Spindle Centerline to Column Surface	175mm
Rotation Angle of Drilling/Milling Head Box Around Column	360°
Vertical Lifting Stroke of Drilling/Milling Head Box	80mm
Drilling/Milling Spindle Taper Hole	MT3
Working Surface Dimensions	200x150mm
Table T-Slot Width	12mm
Spindle Sleeve Travel	80mm
Table Lateral Travel	200mm
Motor Power	1Kw
Speed Transmission Method	0~1850RPM Stepless speed regulation
Machine Tool Dimensions	1160x580x900mm
Machine Tool Weight	200Kg
