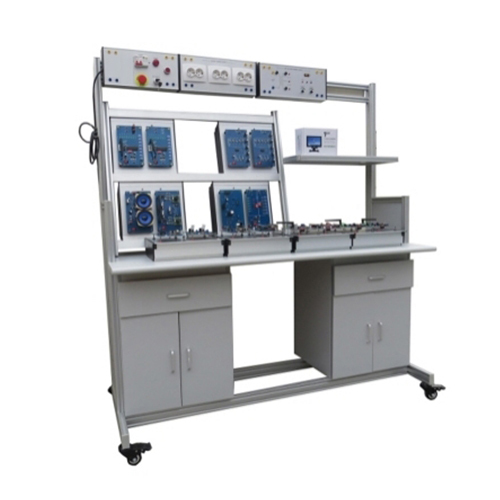

Radio Debugging Training Device Electrical Lab Equipment Educational Equipment Teaching Equipment

SMTE345 Radio Debugging Training Device Electrical Lab Equipment Educational Equipment Teaching Equipment
1. Equipment overview
"SR-type radio debugging training device" provides power and audio and video processing modules, infrared transmitting and receiving modules, 433MHz wireless transceiver modules, radio modules, walkie-talkie modules, TV modules and other typical radio training assessment modules in a modular form , It can complete the debugging, analysis and assessment of a variety of wireless transmission equipment. It can be used as a classroom teaching demonstration, and can also be used as a radio debugger and other corresponding certificate assessments.

2. Equipment parameters
1) Input power Single-phase three-wire system 220V±10%, 50Hz
2) Output power: AC power 220V±10%, 50Hz
AC power supply 7.5V (1A) two sets
Fixed DC power supply +5V (1A), +12V (1A), +35V (1A), -12V (1A)
Adjustable DC power supply: 0～30V (1A)
3) Device capacity ＜1.5KVA
4) Working environment The ambient temperature range is -5～40℃, relative humidity <80% (25℃), altitude <3000 meters
