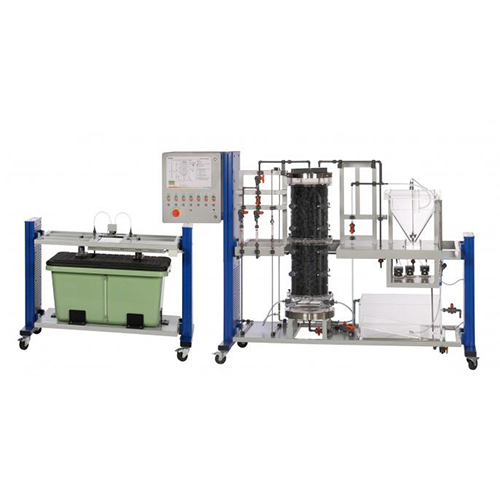

Reverse Osmosis And Ultrafiltration Pilot Plant Water Treatment Trainer Didactic Equipment Vocational Training Equipment

SMTW019 Reverse Osmosis And Ultrafiltration Pilot Plant Water Treatment Trainer Didactic Equipment Vocational Training Equipment
This unit is a fl exible system for studying the reverse osmosis and ultrafi ltration on a wide range of operating conditions.
• Framework of AISI 304 stainless steel with castors
• Feeding tank of AISI 304 stainless steel with capacity of 30 litres
• Tank of AISI 304 stainless steel, with capacity of 30 litres, for permeate
• Piston pump of AISI 316 stainless steel
• AISI 316 stainless steel housing for 2 membranes; typical fl ow of permeate = 5-50 ml/min
• Heat exchanger of AISI 304 stainless steel
• 2 variable area fl owmeters for permeate and concentrate
• 4 Pt100 with sheath of AISI 316 stainless steel
• 2 Bourdon gauges of AISI 304 stainless steel
• Safety valve
• Safety pressure switch
• Switchboard with ELCB

Besides being provided with all the characteristics of, this model also includes the following additional items:
• 2 fl owmeters with transmitter
• 2 pressure transmitters of stainless steel
• Interface for the connection with a PC included in the switchboard
• Data acquisition software for Windows
Dimension: 850 mm × 600 mm × 1500 mm
Weight: 80 kg
Supplied theoretical-experimental manual
