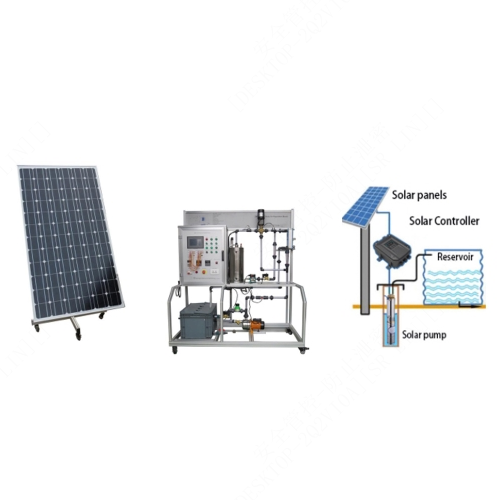

SMTG1043 Solar Pump Bench Educational Equipment Technical Skills Training Renewable Training System I. Training Objective 1.-Start and stop the pumping system. 2.-Automatic shutdown in maximum and minimum level conditions. 3.-Study of the operating speed of the pumping regulator: adjustment and reduction of the voltage. 4.-Commissioning of the solar battery pumping system. 5.- Commissioning of the solar pumping system without batteries. 6.- Study of the operating regime of the pumping regulator. 7.- Study of the operating speed of the pumping controller: variations of the pumped flow. II. TECHNICAL SPECIFICATIONS: Supply voltage: 230V AC(phase, neutral and ground) Output voltage connections: Two single phase: 230V AC. Connector (single phase) Magnetothermic differential. Emergency stop. Local Pumping Control Module: -Power source input terminals. -Measurement connectors. -Internal meters: voltmeter and ammeter. -DC/DC converter. -Exit terminals. -Maximum level LED indicator. - Minimum level LED indicator. -Flow meter signal connector. - Pressure signal connector. On/off switch. -Module power supply voltage: 230V AC. -Nominal working voltage with pump controller approximately: 36V. -DC working voltage range (without pump regulator): between (27-32) v -Peak power with regulator: approximately 170W. -Engine output power: approximately 155. -Fuses. -LED indicator. -DC output terminals. -Auxiliary outlet outlets. -Protection fuse. -On/off switch. -Output voltage: 36 VDC. -Power: approximately 145 W. -A digital multimeter, with 4 mm double connector terminating cables to facilitate interconnections (Voltage, Current, resistance, etc.). -Robust aluminum structure pumping system: The main metal elements are made of stainless steel. -Diagram on front panel. -Pumping tank. -Accumulation tank. -Pressure pump. -Pump voltage: between (27-32) V. -Pumping intensity approximately 4A. -Manual valve. -Tank maximum level sensor. - Minimum well level sensor. -Pipeline pressure gauge. -Analog flow meter. -Drain valve. -Pipe and conduit. -Multimeter. -Interface (SCADA board) for data acquisition. -Power cables. Photovoltaic kit about 300W with regulator and measuring instrumentation. -Interactive software with courses and exercises with correction for a better mastery Different aspects and problems related to solar pumping. -SCADA software for remote maintenance. -Manual in English
