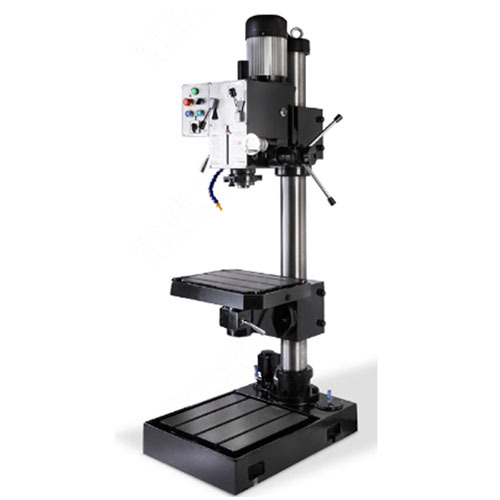

SMM0041 Stand Conventional Drilling Machine Designed to Provide Students with Hands-on Experience in Metal Machining CNC Machine Tools Didactic Equipment Teaching EquipmentDrilling diameter: 45mm
Spindle taper: MT4mm
Spindle travel: 130mm
Distance from spindle center to column surface: 283mm
Distance from spindle end face to worktable: 725mm
Distance from spindle end face to base worktable surface: 1125mm
Worktable bracket travel: 600mm
Maximum spindle head travel: 250mm
Effective worktable area (length*width): 380*300mm
Number of spindle speed stages: 6mm
Spindle speed: 80~1250r/min
Number of spindle feed stages: 6
Effective working area of base: 417x416mm
Three-phase AC motor
Power: 1.5KW
Voltage: 380V
Machine dimensions: 750x1000x1850mm
Packaging dimensions: 770x820x1850mm
Net weight/gross weight: 435/485KG
Speed: 1400r/m
