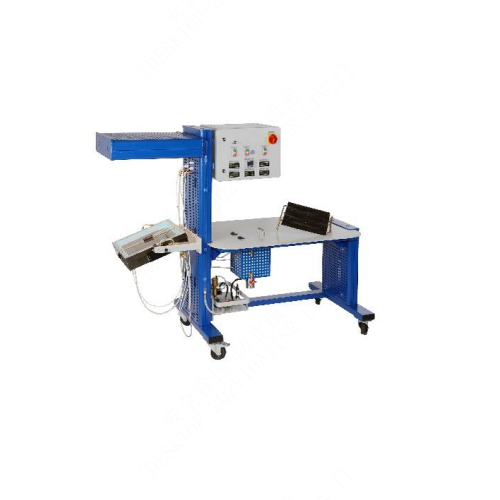

SMTH072 Thermal Exchanges-Vaporization Principe Unit Educational Training Equipment Demonstrator Thermal Laboratory EquipmentFunction:
Study of thermal exchanges:
Convection in a copper tube
Exchange coefficient between the copper and the water (reynolds number, brandt and nusselt)
Thermal resistance due to copper
Coefficient of exchange between the copper and the steam
Power balance received by the water and deduction of heat losses
Calculation of the specific heat of the refrigerant fluid R141b
Laminar and turbulent regime
Vaporization phenomenon (evaporation and boiling) and condensation.
Technical Details
Equipped with: Low voltage indicator, Voltmeter, Ammeter, Temperature indicator, Manometer, Power regulator, Temperature selection, turning on the heating resistance, electrical power reading button
Electrical supply : 220 Vac – 50 Hz
Dimensions: (LxWxH mm): 650 x 450 x 650
weight (Kg): 40
