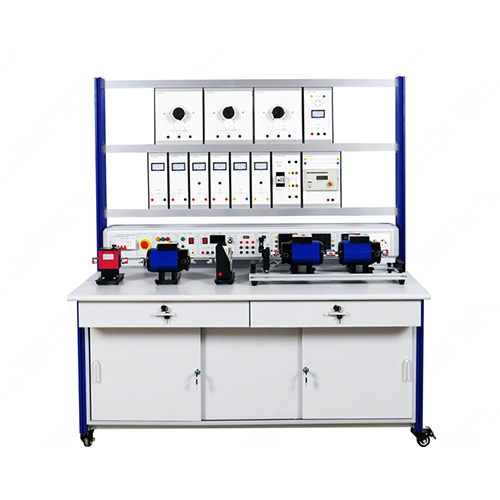

SMTE022SMTE022 Workbench For Testing Direct Current Electrical Machines c Teaching Equipment Educational Equipment
|
Number |
Name |
|
1 |
Module part |
|
2 |
Power box part |
|
3 |
Motor unit |
|
4 |
Desktop |
|
5 |
Frame |
|
6 |
Universal wheel |
|
Number |
Name |
|
1 |
Disk resistor module |
|
2 |
Disk resistor module |
|
3 |
Disk resistor module |
|
4 |
Rectifier bridge module |
|
5 |
DC voltmeter module |
|
6 |
DC voltmeter module |
|
7 |
DC ammeter module |
|
8 |
DC ammeter module |
|
9 |
AC voltmeter module |
|
10 |
AC ammeter module |
|
11 |
AC contactor module |
|
12 |
Magnetic powder brake controller module |
|
13 |
Auto-coupling voltage regulator module |
|
Number |
Name |
|
1 |
4P circuit breaker with leakage protection |
|
2 |
Emergency stop button |
|
3 |
Three-phase output power port |
|
4 |
Single-phase AC 220V output port |
|
5 |
DC output module |
|
6 |
DC output module |
|
7 |
Sensor connection module |
|
8 |
Three-phase multi-function meter |
|
9 |
Single-phase multi-function meter |
|
10 |
Tachometer |
|
11 |
European socket |
|
Number |
Name |
|
1 |
4mm electrical cable 1m double-ended yellow |
|
2 |
4mm electrical cable 1m double-ended green |
|
3 |
4mm electrical cable 1m double-ended red |
|
4 |
4mm electrical cable 1m double-ended blue |
|
5 |
4mm electrical cable 1m double-ended two-color |
|
6 |
Fuse 5A 5*20 |
|
7 |
Fuse 3A 5*20 |
|
8 |
USB cable USB at both ends blue 1.5m |
|
9 |
4mm electrical cable 1m double-ended black |
|
10 |
Transmission cable |
|
11 |
Torque-speed-power sensor |
|
Number |
Name |
Quantity |
|
1 |
Auto-regulator module |
1 |
|
2 |
Disk resistor module |
3 |
|
3 |
Bridge rectifier module |
1 |
|
4 |
DC voltmeter module |
2 |
|
5 |
DC ammeter module |
2 |
|
6 |
AC voltmeter module |
1 |
|
7 |
AC ammeter module |
1 |
|
8 |
AC contactor module |
1 |
|
9 |
Magnetic powder brake controller module |
1 |
|
10 |
DC shunt motor |
1 |
|
11 |
Torque-speed-power sensor |
1 |
|
12 |
Magnetic powder brake |
1 |
|
13 |
DC series motor |
1 |
|
14 |
DC compound motor |
1 |
|
15 |
4mm electrical cable 1 meter double-ended yellow |
8 |
|
16 |
4mm electrical cable 1 meter double-ended green |
8 |
|
17 |
4mm electrical cable 1 meter double-ended red |
8 |
|
18 |
4mm electrical cable 1 meter double-ended blue |
4 |
|
19 |
4mm electrical cable 1 meter double-ended two-color |
2 |
|
20 |
Fuse 5A 5*20 |
5 |
|
21 |
Fuse 3A 5*20 |
5 |
|
22 |
USB cable USB blue 1.5 meters at both ends |
1 |
|
23 |
4mm electrical cable 1 meter double-ended black |
8 |
|
24 |
Transmission cable |
1 |
